Micro-molex pinout

All the new Tuneboss devices have an additional connector for peripherals: a wideband O2 sensor and a quickshifter (more on those once I’ve figured out how it’s set up).

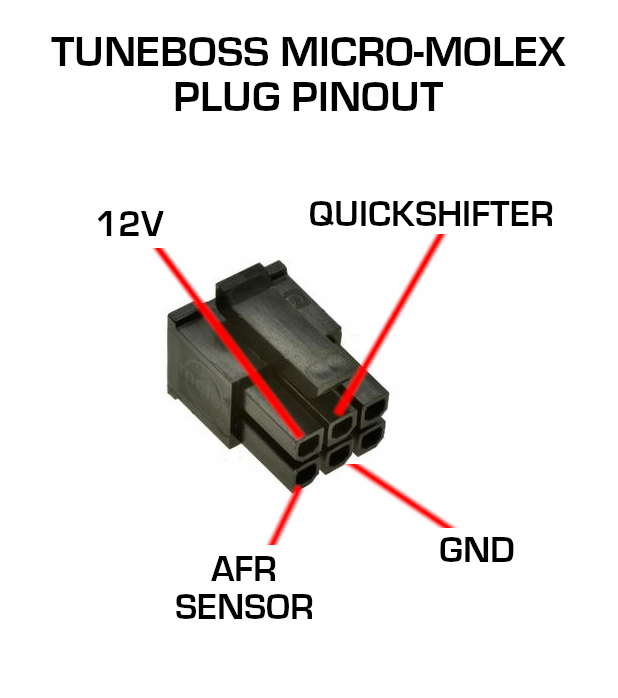

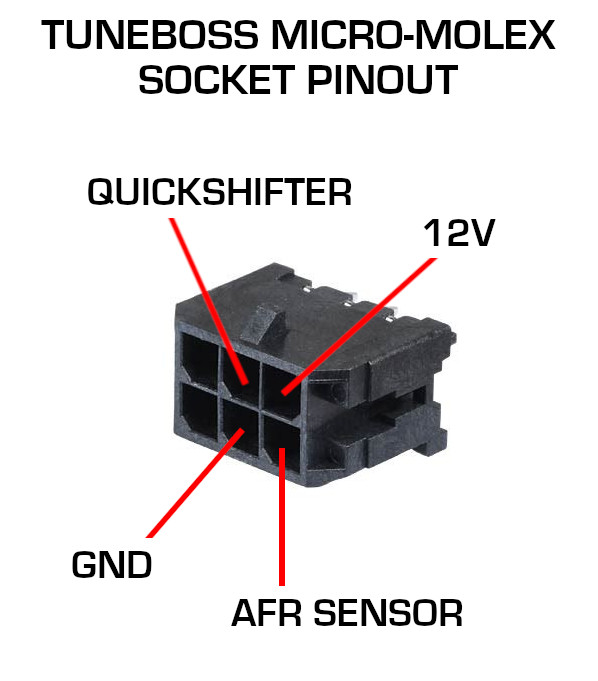

This is the pinout diagram for the connector:
